BHARAT SANCHAR NIGAM LIMITED
(A Government of India Enterprise)
CHENNAI TELEPHONES

MODEM CONFIGURATION  / WIRELESS SECURITY

FOR TYPE 2 MODEM- WA 3002 G4

I.  Modem configuration:

II. Wireless Security

III. Additional MAC address restricted Wireless Security

I.  Modem configuration:

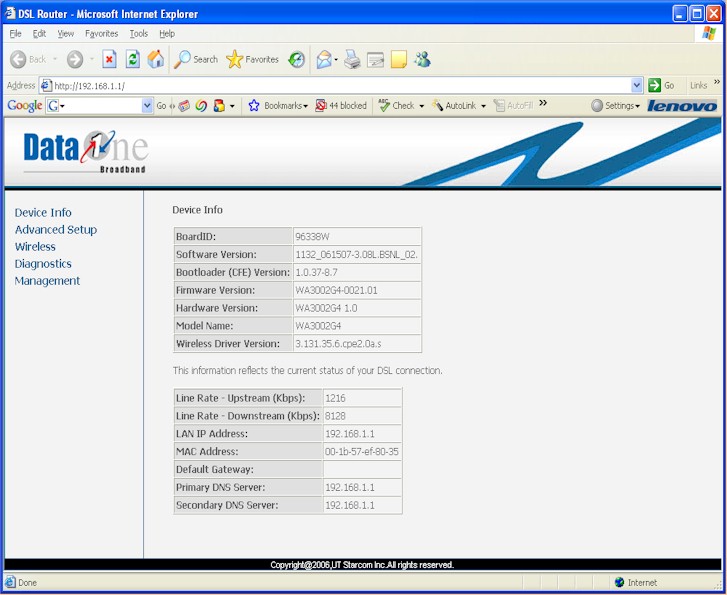

1. In the Internet Explorer, type 192.168.1.1 and press enter

2. Type username as admin and password as admin and press OK

3. Click "Advanced Setup"

4. Click Edit button against VPI/VCI -0 and 35

5. Click Next in the above screen

6. Select PPP over Ethernet (PPPoE) in  the above screen




7. In the above screen type username and password as given to you by BSNL

8. In the PPPoE  Service Name, type a string say "dataone"

9. Tick the following

Enable PPP Debug Mode

Bridge PPPoE Frames Between WAN and Local Ports (Default Enabled)

10. Click Next

11. Click Next in the above screen after selecting Enable NAT

12. Click SAVE

13. Click Save/Reboot in the above screen

14. Click Management and choose Save/Reboot



15. Click Save/Reboot button in the above screen –the changes are saved permanently

 II. Wireless security:

 This is important as otherwise the ADSL wireless works in an unsecured mode, which is unsafe.

1. Click Wireless in the menu

2. 2. Click Security in the menu

3. Click WPA-PSK in network authentication

4. Type against WPA Pre Shared key -a key , for example say 12345678

5. Click Save./ Apply

6. Click Management

7. Select Save/Reboot

8. Click Save/ Reboot

9. This completes the wireless security configuration

Note: The pre shared key which you have typed in the step number 4 is the key to be provided in the Laptop for getting  secured Wireless connectivity from Laptop for Broadband.
